Jandy VersaTemp JRT3000R Heat/Chill Pool Heat Pump
A Gulf Coast pool that gets swum in most of the year and an owner who wants the same box to take the edge off the water in August as well as warm it in February.
Electric heat pump
SKU JRT3000R
- Heating capacity
- 130,000 BTU/hr
- Fuel / power
- Electric
- Efficiency (COP)
- COP 5.8 at 80°F air / 80°F water / 80% RH (AHRI Standard 1160)
- Heat exchanger
- Titanium
- Warranty
- Parts: 2 years · Compressor: 5 years · Heat exchanger: 5 years
- Controls & automation
- LCD controller with multilingual self-diagnostic messages and a setpoint lockout; two- or three-wire remote, or RS-485 to a Jandy AquaLink RS system, which can switch it between heating and chilling and run the Auto-Heat sampling mode (the installation manual calls it Maintain Heat).
Modern Pool Heating Equipment Score
Our score for the equipment itself. It is not a Google or customer review rating.
How we rate heatersFull specifications
Every row below is taken from a manufacturer document. Anything the manufacturer does not publish is left out rather than estimated.
| Manufacturer model number | JRT3000R (JRT3000R3 is the three-phase version) |
|---|---|
| VersaTemp range | JRT2000R 103,000 BTU/hr at COP 6.4; JRT2500R 116,000 at COP 6.5; JRT3000R 130,000 at COP 5.8; JRT3000R3 (three-phase) 130,000 at COP 6.1; JRT4001R 160,000 at COP 5.9 — all at 80°F air / 80°F water / 80% RH, from Jandy's 2026 VersaTemp brochure. The Fluidra 2026 catalog addendum lists the four single-phase part numbers. |
| Heating capacity | 130,000 BTU/hr at 80°F air / 80°F water / 80% RH |
| COP | 5.8 at 80/80/80; 5.6 at 80°F air / 63% RH; 4.0 at the AHRI low test point (50°F air / 63% RH / 80°F water) |
| Capacity at the low test point | 82,000 BTU/hr at 50°F air / 63% RH / 80°F water |
| Heat or heat and cool | Heat and chill — the chiller feature is standard on every JRT model |
| Heat exchanger | Titanium twisted coil |
| Compressor | Scroll |
| Cabinet | ABS |
| Electrical | 208/230V, 1 phase, 60 Hz |
| Minimum circuit ampacity | 40 A |
| Maximum breaker | 50 A |
| Running / locked rotor amps | 32.5 A running; locked rotor amps are 148 A in the installation manual (H0744700) and 182 A on Jandy's 2026 brochure |
| Water flow | 30 GPM minimum, 70 GPM maximum, 57 GPM optimal |
| Water connections | 2" PVC tail piece and nut |
| Air flow | 3,600 CFM |
| Clearances | 24" front, 12" rear and each side, 60" above; outdoor installation |
| Defrost | Hot gas defrost — the unit reverses to clear ice from the coil |
| Weight | 252 lbs |
| Controls and automation | LCD controller with multilingual self-diagnostic notifications, setpoint lockout and separate pool and spa modes; two-wire or three-wire remote; RS-485 to a Jandy AquaLink RS system, which can switch between heating and chilling and run Auto-Heat temperature sampling (named Maintain Heat / Maintain Chill in the installation manual). |
Why homeowners consider it
- It heats and chills, and Jandy publishes the chiller feature on every JRT model rather than as a separate SKU. In Florida that second mode is not a novelty — an unscreened pool sitting in the high 80s in August is a real complaint.
- The heat exchanger is a titanium twisted coil and the cabinet is ABS, so there is no copper in the water path and no steel shell to rust. That is the right specification for salt pools, barrier islands and anywhere the sprinklers reach.
- Hot gas defrost is standard. Instead of simply shutting down when the coil ices up, the unit reverses and uses its own heat to clear the coil, which keeps it working through the cool, damp mornings when a Florida pool actually loses its heat.
- Efficiency holds up at the cold end. Jandy publishes COP 5.8 at the 80/80/80 test point, 5.6 at 80/63/80 and 4.0 at the AHRI low test point of 50°F air — so it still returns four units of heat per unit of electricity on the coldest mornings we get.
- It joins a Jandy AquaLink system over RS-485, and Jandy states that an AquaLink RS control with that connection lets the remote switch between heating and cooling — plus an Auto-Heat mode that turns the pump on periodically to sample water temperature. Jandy's sell sheet calls that feature Auto-Heat; the installation manual calls it Maintain Heat, which is the name to search for in the manual.
What to know before buying
- The warranty is short for the category. Jandy publishes two years on heat pumps, with five years on the compressor and heat exchanger, and no labor coverage. GulfStream publishes seven years parts and two years labor, and Raypak publishes seven years parts, two years labor and ten years on the titanium tube. If warranty is your first filter, this is not the unit.
- It is electrically hungry. The JRT3000R needs 208/230V single phase with a 40 amp minimum circuit ampacity and a 50 amp maximum breaker, and it draws 32.5 running load amps. Older Sarasota and Bradenton panels frequently need work before one goes in.
- Flow has to land between 30 and 70 GPM, with 57 GPM stated as optimal. That is a narrower window than most gas heaters and it constrains how slowly a variable-speed pump can run while the heat pump is on.
- It needs air, and a lot of it. Jandy specifies 24 inches of clearance at the front, 12 inches at the rear and each side, and 60 inches above — and indoor installation is not recommended. At 3,600 CFM of airflow it also throws cold air, which you do not want blowing back into the evaporator.
- Jandy publishes no minimum operating ambient temperature for the JRT series in its manual, so we cannot tell you where output stops. Every air-source heat pump loses capacity as the air cools; treat the 50°F test point as the coldest figure Jandy actually publishes.
- Condensate is not a leak. The manual says to expect three to five gallons an hour of condensation off the evaporator coil in humid conditions — normal here, and a reason the pad needs to drain.
- Jandy's warranty excludes product bought through the internet or e-commerce platforms and requires a licensed, qualified installer.
Warranty, term by term
The warranty only matters on the parts that actually fail. Here is how this one splits up.
- Parts
- 2 years
- Compressor
- 5 years
- Heat exchanger
- 5 years
Jandy's published limited warranty gives heat pumps two years, with heat pump compressors and heat exchangers at five years. There is no labor coverage — the document states Fluidra's liability does not include costs for labor to service or repair the product — and refrigerant and other expendables are not warranted. The warranty does not apply to Jandy products purchased through the internet or other e-commerce platforms, applies only to units installed and serviced by a licensed, qualified pool professional, and drops to one year in any application other than a single-family dwelling. Professional installation / authorized-channel requirements may apply.
Why the heat exchanger matters
The heat exchanger is the part of a pool heater that actually moves heat into the water, and what it is made of decides how long the heater survives Florida water chemistry. Here is what the four materials mean in practice.
- Copper
- The traditional material and the cheapest to build. It transfers heat well and is fine on a well-balanced chlorine pool, but it is the least forgiving of low pH, high chlorine and salt. On the Gulf Coast it is usually the first component to fail.
- Cupro-nickel
- Copper alloyed with nickel. It gives up a little heat transfer in exchange for much better resistance to unbalanced water chemistry and salt. On gas heaters this is the upgrade worth having in Florida, and some manufacturers now ship it as standard.
- NiTek (nickel alloy)
- A nickel-alloy exchanger used on some gas heaters as a corrosion-resistant alternative to copper. Positioned between cupro-nickel and titanium in both durability and price.
- TitaniumThis heater
- Effectively immune to pool water chemistry, including salt. It is the standard on quality pool heat pumps and the reason a heat pump can sit on a salt pool for years without exchanger trouble. It is expensive, which is why you rarely see it on gas heaters.
Whatever the material, plumbing order matters just as much: a chlorinator or salt cell belongs downstream of the heater, never upstream.
How we scored it
- Warranty is why this lands about a point below the 4.6 starter score in our source guide. Two years on the unit and five on the compressor and exchanger, with no labor coverage, is genuinely behind GulfStream's seven-and-two and Raypak's seven-and-two-plus-ten on the titanium tube. We weight warranty at 25% and we are not going to pretend otherwise.
- Durability takes a full 5. A titanium twisted-coil exchanger in an ABS cabinet is the best combination available for salt pools and coastal air — no copper in the water, no steel shell to rust.
- Performance scores 4. COP 5.8 at 80/80/80 is solid but not class-leading — the smaller JRT2000R and JRT2500R publish 6.4 and 6.5, and the larger 160,000 BTU/hr JRT4001R publishes 5.9 — and 4.0 at the AHRI low test point is respectable rather than exceptional, against 4.4 on the JRT4001R. Hot gas defrost is a genuine plus for Florida mornings.
- Serviceability is fair: Jandy's dealer and distribution network in Florida is strong and the LCD reports faults in plain language, but this is a large, heavy unit with a sealed refrigerant circuit that needs a certified technician.
- Controls score 4. The RS-485 link into AquaLink is a real one and can switch heat and chill remotely, but there is no native app or Wi-Fi — the iAquaLink experience depends on owning the automation system.
- Value is the weakest column. This is a premium-tier heat pump on price with a category-trailing warranty, and buyers comparing it against a GulfStream TA or a Raypak Crosswind V heat/chill should look hard at the coverage before paying the difference.

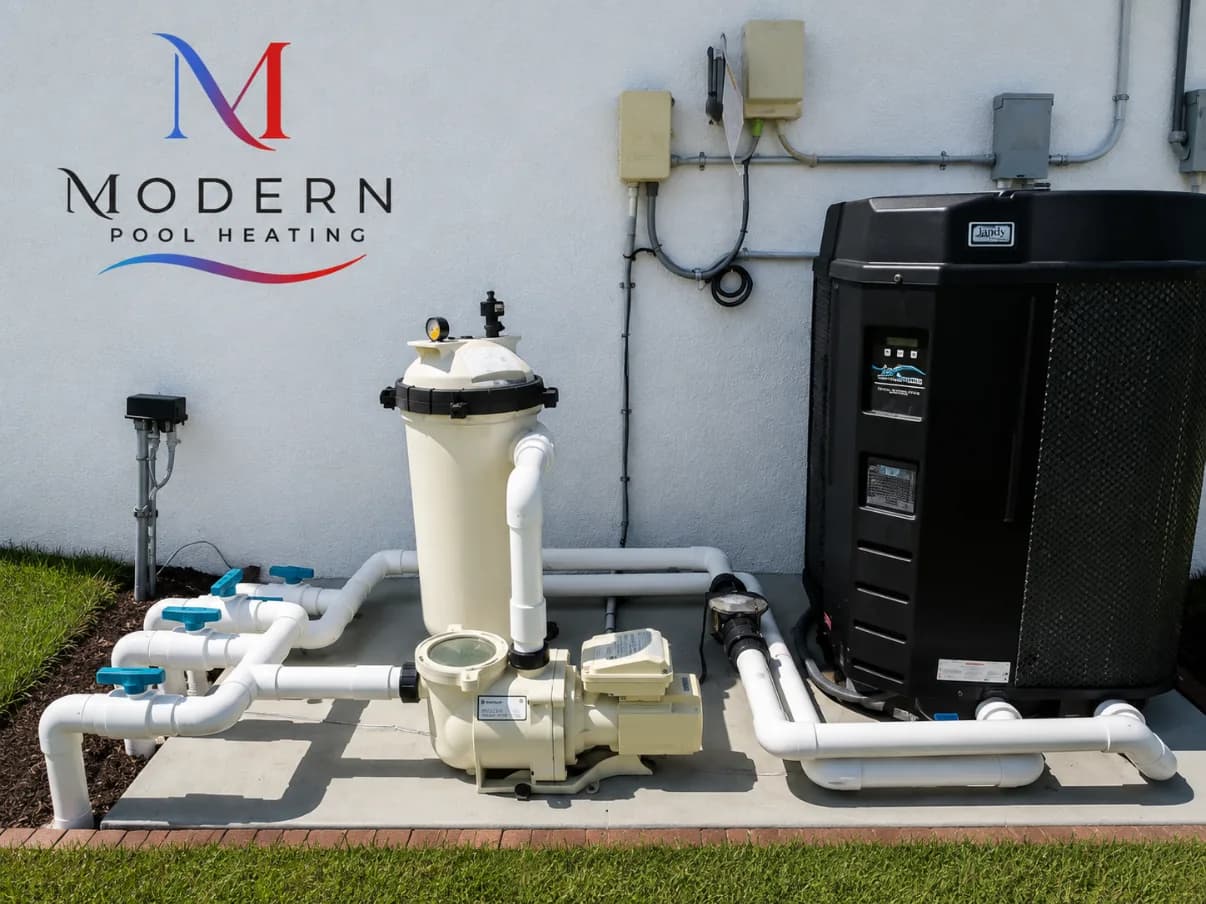

Real Modern Pool Heating installations
Installed locally, researched for everyone
Affordable Solar & Pool Heating, LLC installs and services pool heating in Sarasota, Manatee, Charlotte & Pinellas County, Florida. If you are outside that area this page is still yours to use — take the questions on it to your local contractor. Pool heater installation in Sarasota.
Other heaters worth putting beside it
Same job, different tradeoffs. Every one of these has its own verified spec page.
Jandy · VersaTemp JRT Series
Jandy VersaTemp JRT4001R Heat/Chill Pool Heat Pump
Model JRT4001R
- Heating capacity
- 160,000 BTU/hr
- Efficiency (COP)
- COP 5.9
- Heat exchanger
- Titanium
- Warranty
- 2-Year Parts5-Year Heat Exchanger
- Wi-Fi / automation
- App Control via AutomationAutomation Compatible
A large or exposed Gulf Coast pool that would otherwise be quoted two heat pumps, on a 230-volt service with room for a bigger circuit, where the owner also wants to chill the water in August.
GulfStream · GulfStream HE Series
GulfStream HE150-TA Heat/Cool Pool Heat Pump
Model HE150-TA
- Heating capacity
- 135,000 BTU/hr
- Efficiency (COP)
- COP 6.0
- Heat exchanger
- Titanium
- Warranty
- 7-Year Parts / 2-Year Labor
- Wi-Fi / automation
- Automation Compatible (Relay)
A Gulf Coast pool that gets used most of the year and an owner who also wants the option to take the edge off the water in late summer.
Raypak · Crosswind V
Raypak Crosswind V 8550 Heat/Chill Pool Heat Pump
Model TWPH-8550EHC08
- Heating capacity
- 137,000 BTU/hr
- Efficiency (COP)
- COP 5.8
- Heat exchanger
- Titanium
- Warranty
- 7-Year Parts / 2-Year Labor10-Year Heat Exchanger
- Wi-Fi / automation
- Wi-Fi Built In
A Gulf Coast pool that gets used most of the year, where the owner wants heat in winter, the option to chill in August, and a warranty of seven years parts, two years labor and ten years on the titanium tube.
JRT3000R questions
What does the VersaTemp actually chill?
The pool. Every JRT model has the chiller feature, so the same unit that heats the water in February can reverse and pull heat out of it in August. In practice Florida owners use heating far more hours than chilling, but the chill mode is the reason a lot of people choose a reversible unit here.
How big a pool will 130,000 BTU heat?
Most residential Gulf Coast pools comfortably. Surface area, whether the pool is screened, how exposed the lot is and the temperature you actually want move the answer more than gallons do, so we size it on site rather than from a chart. If the pool needs more than this, Jandy's 2026 documents add a 160,000 BTU/hr JRT4001R to the same line; it is a heavier unit on a larger electrical circuit, and it has its own page here.
What sizes does the VersaTemp come in?
Jandy's 2026 VersaTemp brochure lists five models, all heat and chill, rated at 80°F air, 80°F water and 80% relative humidity: JRT2000R at 103,000 BTU/hr (COP 6.4), JRT2500R at 116,000 (COP 6.5), JRT3000R at 130,000 (COP 5.8), the three-phase JRT3000R3 at 130,000 (COP 6.1) and JRT4001R at 160,000 (COP 5.9). The Fluidra 2026 catalog addendum lists the four single-phase part numbers.
Will it work on a salt water pool?
Yes — the titanium exchanger is exactly what you want there, and the ABS cabinet has no steel to corrode. The usual rule still applies: the salt cell or chlorinator goes downstream of the heat pump, never upstream.
What electrical service does it need?
208/230V single phase, 40 amp minimum circuit ampacity and a 50 amp maximum breaker, drawing 32.5 running load amps. On older Florida panels that often means a service or panel evaluation before the heat pump goes in, and the cost of that should be in the quote.
Can I run it from my phone?
Through a Jandy AquaLink system, yes. The heat pump connects to an AquaLink RS power center over RS-485, which lets the automation switch it between heating and chilling and run the Auto-Heat sampling mode — the installation manual calls the same feature Maintain Heat, and it only works when the heat pump is connected to an AquaLink. There is no standalone Wi-Fi or app in the heat pump itself.
Do you install Jandy heat pumps in Sarasota?
Yes. We install and service pool heat pumps, including Jandy units, throughout Sarasota, Manatee, Charlotte & Pinellas County, Florida. One of the installs in our gallery is a Jandy heat pump on a fresh pad. The comparison content here is written for pool owners anywhere; the installation offer is local.
Is the JRT3000R right for your pool?
We install and service pool heating in Sarasota, Manatee, Charlotte & Pinellas County, Florida. If you are outside that area, the comparison above is still yours to use — ask your local contractor the same questions.
Licensed & insured · Florida Certified Pool/Spa Contractor #CPC1460367 · Mon-Sat, 8am-6pm
Last verified September 18, 2026
Specifications and warranty terms are taken from the manufacturer documents below. Manufacturers revise these without notice, so confirm the current terms before you buy. If you spot something out of date, email us and we will fix it.
Sources
- Jandy — VersaTemp JRT Series Heat Pump Installation & Operation Manual, H0744700 (full technical specification table, clearances, flow, chiller and hot-gas defrost, AquaLink RS-485 wiring)
- Jandy — VersaTemp Heat/Chill Pump sell sheet, 00982_SL (capacity, COP, electrical, titanium exchanger, SoundShield, AquaLink Auto-Heat)
- Jandy — VersaTemp Heat/Chill Pump brochure, 34267_SL, ©2026 (specification table for JRT2000R, JRT2500R, JRT3000R, JRT4001R and JRT3000R3: capacity and COP at three test points, electrical, flow, weight and dimensions; SoundShield, 50 amp breaker statement, 40°F cold plunge, iAquaLink)
- Jandy / Fluidra — 2026 Product Catalog Addendum, Heat Pumps, 53268 (current VersaTemp part numbers JRT2000R, JRT2500R, JRT3000R and JRT4001R with capacity and COP rated to AHRI Standard 1160)
- Jandy — USA & Canada Jandy Limited Warranty, H0333803 (1 year on JXi heaters, 5 years on factory VersaFlo heat exchangers, 2 years on heat pumps with 5 years compressor and exchanger, no labor, e-commerce exclusion)
